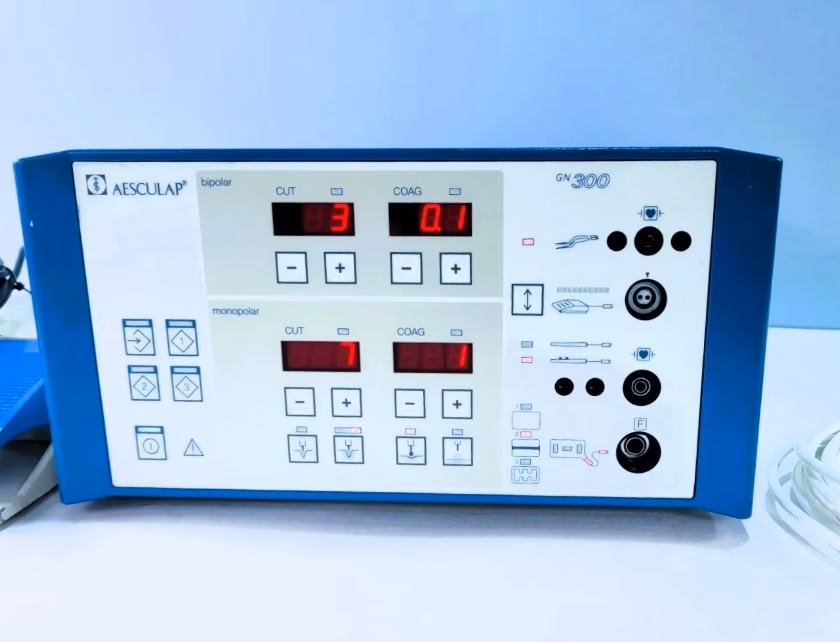

AESCULAP GN300

Electrosurgical unit

Tested-functional

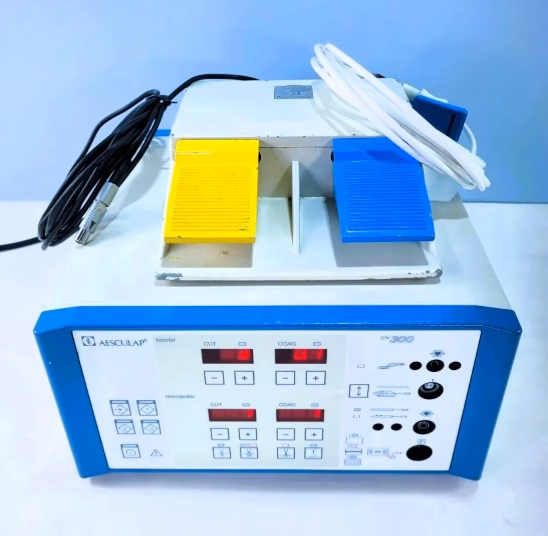

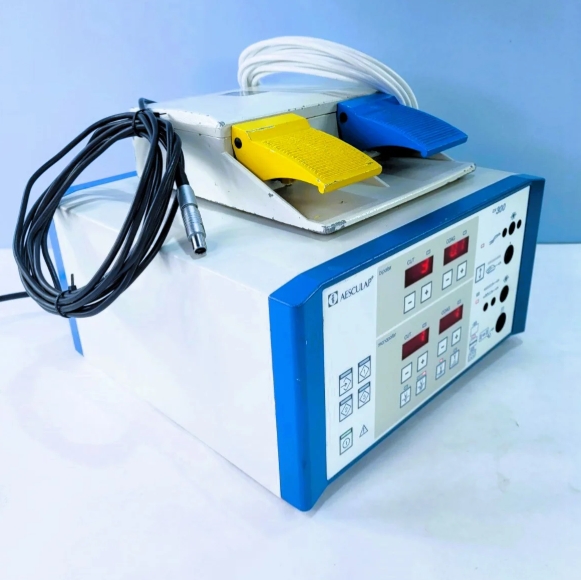

Included: foot switch, electrode cable

Features:

The B.Braun GN300 is a radiosurgical device for the dissection and coagulation of biological tissue during surgery. It combines monopolar and bipolar modes of operation. It has a wide range of applications: in the fields of ENT, microsurgery, gynaecology, neurosurgery, paediatric surgery, etc. The device was developed by a division of the renowned German company B. Braun-Aesculap, which specialises in operating theatres and interventional departments. the GN300 model has both monopolar and bipolar technology.

Advanced components

• After switching on an automatic unit test is performed.
• During operation all signals relevant to safety, operation of the function keys and the connected accessories are monitored.
• Any irregularities are indicated to the user audibly and visually.

Micro and macro coagulation

• MICRO power range: 0.1 to 9.9 watts, adjustable in 0.1 watt steps.
• Extremely precise point coagulation without tissue adhesion is possible.
• MACRO power range: 1 to 50 watts, adjustable in 1 watt steps.
• Universal use of the bipolar coagulator.

Adaption

• Automatically adaptation to different tissue impedance levels, both in micro and macro ranges.

Memory function

• Individual, indication-specific empirical values can be stored in 4 memory locations and then called up quickly with the push of a button when required.

Automatic start function (optional)

• If desired the generator switches itself on automatically as soon as the forceps tips come into contact with tissue.
• The generator is switched on by operating of the foot switch if the automatic start function is not activated.

Remote control (optional)

• Cable-free infrared remote control also permits switching of the output power (4 memories) by the operating surgeon under sterile conditions.

International safety standards

• Compliance with national and international regulations is confirmed by test institutes.

Range of Application

• Microsurgery
• Neurosurgery
• Plastic & Reconstructive Surgery
• ENT Surgery
• Ophtalmology
• Pediatric Surgery
• Gynaecology
• Laparoscopy
•
