Description

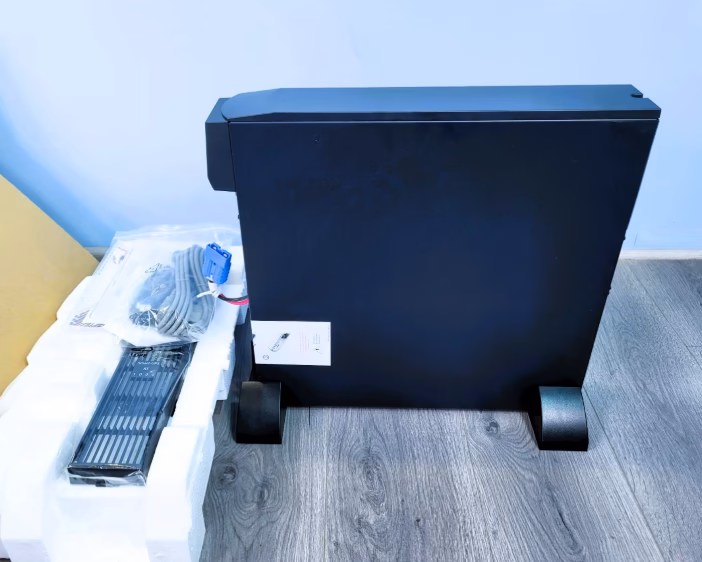

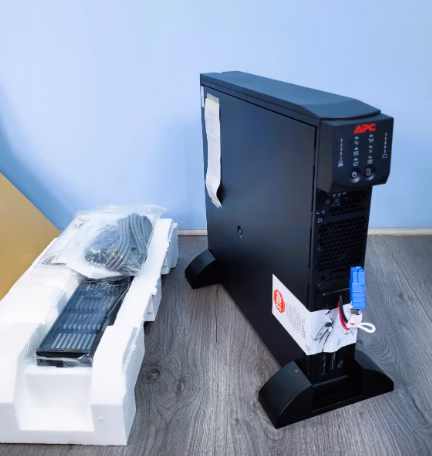

APC Smart-UPS RT 1000

MEDICAL UPS

BRAND NEW

The APC Smart-UPS RT 1000 is a professional-grade online UPS designed for servers, telecom systems, network infrastructure, industrial equipment, and medical electronics.

Main specifications

• Power capacity: 1000 VA / 700 W
• UPS topology: Double-conversion online UPS
• Waveform: Pure sine wave output
• Transfer time: 0 ms (true online UPS)
• Input voltage: 230 V AC
• Input range: 160–280 V adjustable
• Output voltages: 220 / 230 / 240 V configurable
• Frequency: 50/60 Hz auto-sensing
• Efficiency: approx. 88–89% at full load

Battery system

• Battery type: Maintenance-free sealed lead-acid (VRLA)
• Recharge time: ~3 hours
• Runtime:
  • ~14 min at full load according to some configurations
  • scalable with external battery packs (SURT48XLBP)
• Hot-swappable batteries: Yes

Connectivity and management

• RS-232 serial port
• USB management
• SmartSlot expansion port
• Optional network management card
• PowerChute shutdown software support

Physical specifications

• Rack height: 2U rackmount convertible tower
• Dimensions: approx. 432 × 85 × 483 mm
• Weight: ~23 kg
• Output connectors: 6 × IEC C13 2 IEC jumpers

Key advantages

• True online protection with zero interruption
• Excellent compatibility with active-PFC power supplies
• Medical/lab-grade stable output
• Expandable runtime
• Enterprise-grade reliability
• Very robust industrial construction
