Description

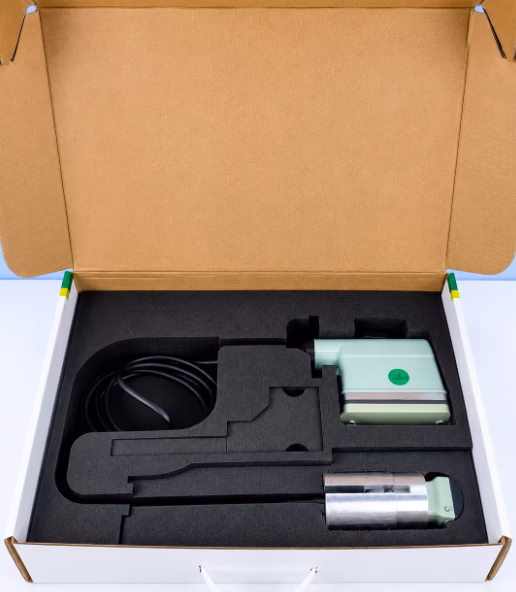

BK MEDICAL 8803

Convex probe with lithotripsy adapter

Good working condition



Main features

• Probe type: Convex / curved array transducer
• Frequency range:
  • typically 3.5–5.0 MHz
  • some sources indicate up to 3–6 MHz depending on configuration
• Applications:
  • abdominal imaging
  • pediatric imaging
  • general-purpose ultrasound
  • some cardiac applications
• Imaging format: Wide-field convex imaging
• Technology: Multi-frequency imaging (MFI on some variants)

Optional interventional capability

The 8803 can be equipped with:

• reusable biopsy/needle guides
• puncture adapters
• stainless-steel biopsy kits for guided procedures

Physical / operational characteristics

• Convex ergonomic housing
• Deep penetration imaging
• Designed for medium-depth abdominal studies
• Mechanical durability typical of older BK Medical probes
• Compatible with standard probe covers and sterilization accessories
