Description

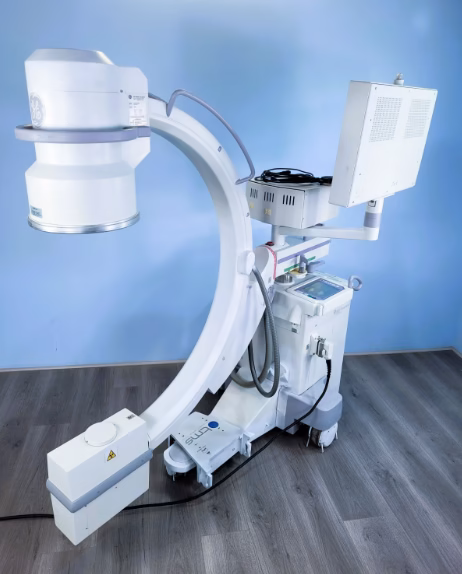

GE OEC Fluorostar 7900 Compact

C-ARM

Good working condition

Tested

The GE OEC Fluorostar 7900 Compact is a compact mobile C-arm fluoroscopy system designed for orthopedic, vascular, urology, pain management, emergency, and general surgical imaging.

Main Features

Imaging System

• High-resolution digital fluoroscopy system
• 1K × 1K CCD image processing
• Tri-mode 9′ image intensifier:
  • 23 cm (9′)
  • 15 cm (6′)
  • 11 cm (4.5′)
• Real-time fluoroscopic imaging
• Pulsed fluoroscopy for reduced radiation dose
• Advanced noise reduction and edge enhancement filters

X-Ray Generator

• High-frequency generator
• Power output: approximately 2.2–2.5 kW
• kV range:
  • 36–110 kV
• Fluoroscopy current:
  • 0.2–8 mA depending on mode
• Radiography mode:
  • up to 20 mA
• Continuous and pulsed fluoro modes available

X-Ray Tube

• Stationary anode X-ray tube
• Dual focal spots:
  • 0.5 / 0.6 mm
  • 1.5 mm
• Heat capacity up to:
  • 953 kHU on some configurations
• Supports continuous surgical workflow

Display & User Interface

• Single or dual 19′ LCD/TFT flat-screen monitors
• Dual-side touchscreen controls
• Integrated image post-processing:
  • zoom
  • rotation
  • contrast adjustment
  • image review
• User-friendly workflow with footswitch and hand controls

Dose Management

• Pulsed fluoroscopy
• Low-dose imaging modes
• Preview collimation without radiation
• Laser aimer options
• DAP/Dose reporting on some versions

Typical Clinical Applications

• Orthopedics & trauma
• Urology
• Pain management
• Vascular procedures
• Endoscopy
• ICU / ER imaging
• Spine procedures
