Description

OLYMPUS OCS-2

Colposcope / microscope

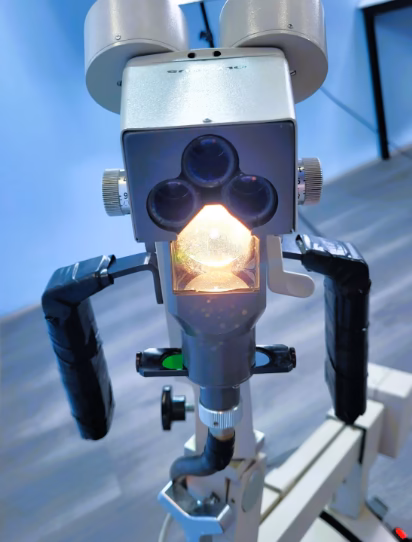

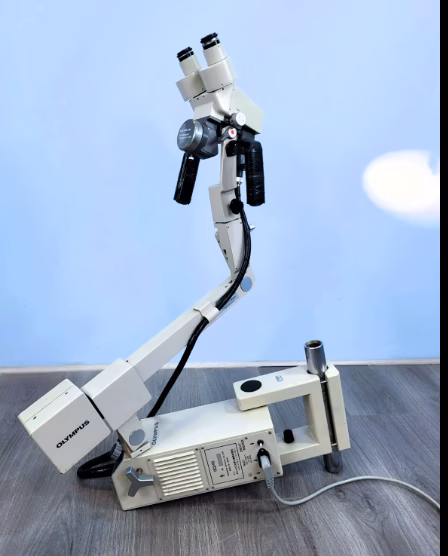

Tested. As it is in the photos

The OLYMPUS OCS-2 is a binocular optical colposcope designed for gynecological cervical examinations and diagnostic imaging.

Main features and specifications:

• Binocular stereoscopic optics
  • True stereoscopic vision for depth perception during examination.
  • Optical colposcope with manual focus system.
• Magnification
  • Typical magnification range:
    • approximately 5.4x to 16x according to historical Olympus documentation/reviews.
    • some listings indicate up to 23x depending on optics/configuration.
• Illumination system
  • Halogen or fiber-optic cold light source depending on configuration.
  • Variable illumination intensity.
  • Green filter for vascular visualization and tissue contrast.
• Optical quality
  • Olympus zoom optical system with high-resolution image clarity.
  • Dual-objective optical design for stereoscopic observation.
• Mechanical design
  • Articulated balancing arm for smooth positioning.
  • Mobile floor stand with wheels.
  • Ergonomic controls for one-hand operation.
• Working distance
  • Around 220–300 mm depending on objective lens used.
• Documentation options
  • Compatible with:
    • video adapters,
    • C-mount cameras,
    • Olympus OTV systems,
    • photographic adapters.
• Typical applications
  • Cervical pathology screening,
  • colposcopy,
  • biopsy guidance,
  • gynecology clinics,
  • teaching/documentation.
