Description

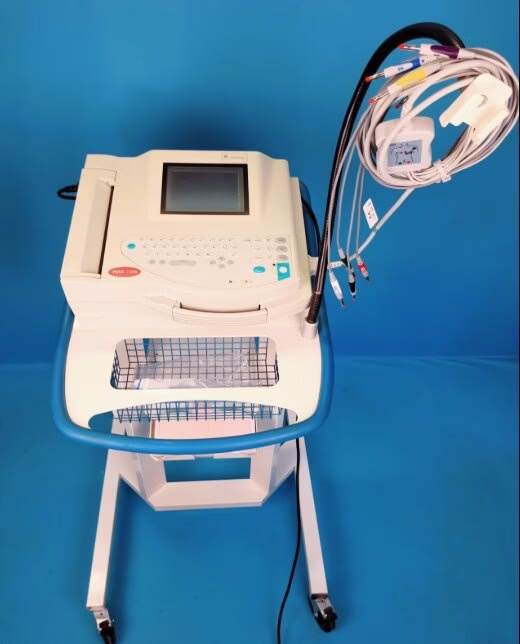

GE MAC 1200

Electrocardiograph ECG/EKG

Good Working Condition

TESTED FUNCTIONAL

Can be shipped with or without the trolley

FEATURES:

The GE MAC 1200 is a digital 12-lead EKG Machine that offers comprehensive ECG solutions. The MAC 1200 offers practical features that help meet the demanding needs of hospitals, clinics, office-based practices, and clinical trials. Its advanced algorithm capabilities, seamless connectivity to the CS and MUSE Cardiology Information Systems and easy-t0-use features; provide maximum quality and convenience. Resting ECGs acquired in the 12-lead mode, and the corresponding data, can then be transmitted to a PC, CardioSys system, or to a MUSE CV system. This EKG Machine is equipped with electronic utilities that ensure artifact-free recordings. Among these are the automatic baseline adjustment and the anti-drift system (Cubic Spline and ADS).



This system can be configured to meet the needs of hospitals, clinics, and office-based practices

Allows access to EKG data gathered throughout a provider network, assuring high quality and continuity of care

Comprehensive solution for EKG requirements

Waveform LCD display

Interpretive EKG

Full-size paper reports

Portable with a built-in battery

Measurements, interpretation, and memory available in any combination

Simultaneous 12-lead ECG acquisition and analysis

Compact, lightweight design with carrying handle

Field upgradability



Signal Processing:

Acquisition: 12 leads – simultaneously.

Signal input: Type CF according to IEC.

Digital sampling rate: 1000 samples/second/channel.

Dynamic range: Differential signals for AC voltage ±, 10mV Superimposed DC voltage (Polarization voltage) ±600mV.

Resolution: 5 uV.

Frequency response:0.04 – 150 Hz.

Common mode rejection:> 140 dB.

Input impedance: > 100 M ohms.

Leakage current: < 10uA.

Pacemaker detection sensitivity: All leads, duration 0.1 – 2.5 ms, amplitude > 5 mV.



Special Functions:

Anti Drift System (ADS): Automatic compensation of baseline fluctuations caused by polarization voltage fluctuations at the electrodes.

Baseline adjustment: ECG presentation on the averaged baseline.

Electrode monitoring: Audible and visual indication on the LCD of disconnected electrodes or fine break. Every single electrode is monitored.

Copy: In the automatic 12 lead modes, after ECG, recording, copies of the ECG can be printed.

Test: Automatic performance test upon power up, including verification of the signal path starting at the signal input.
