Description

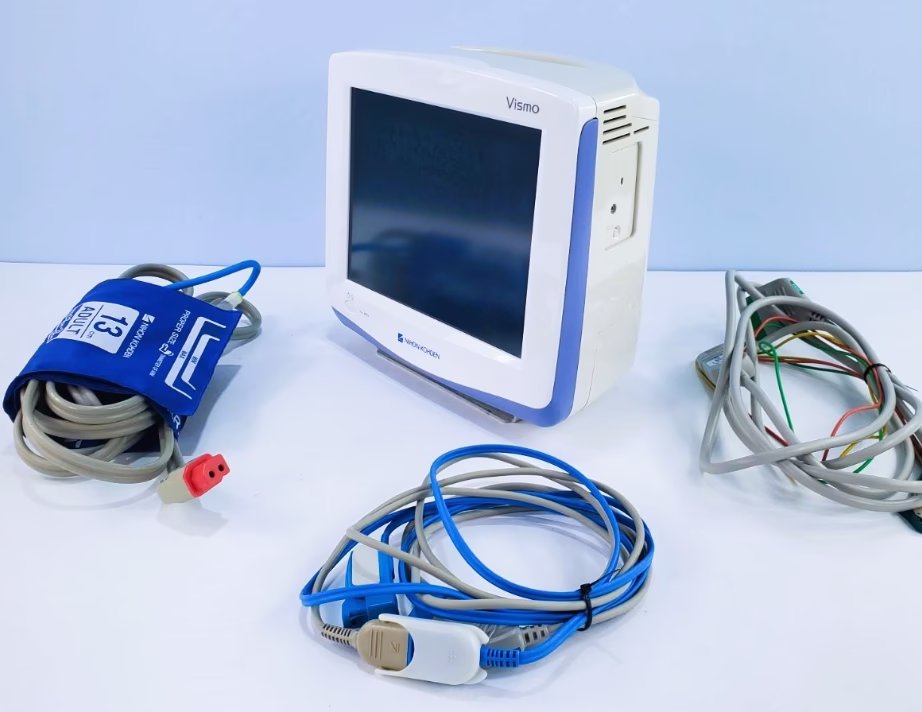

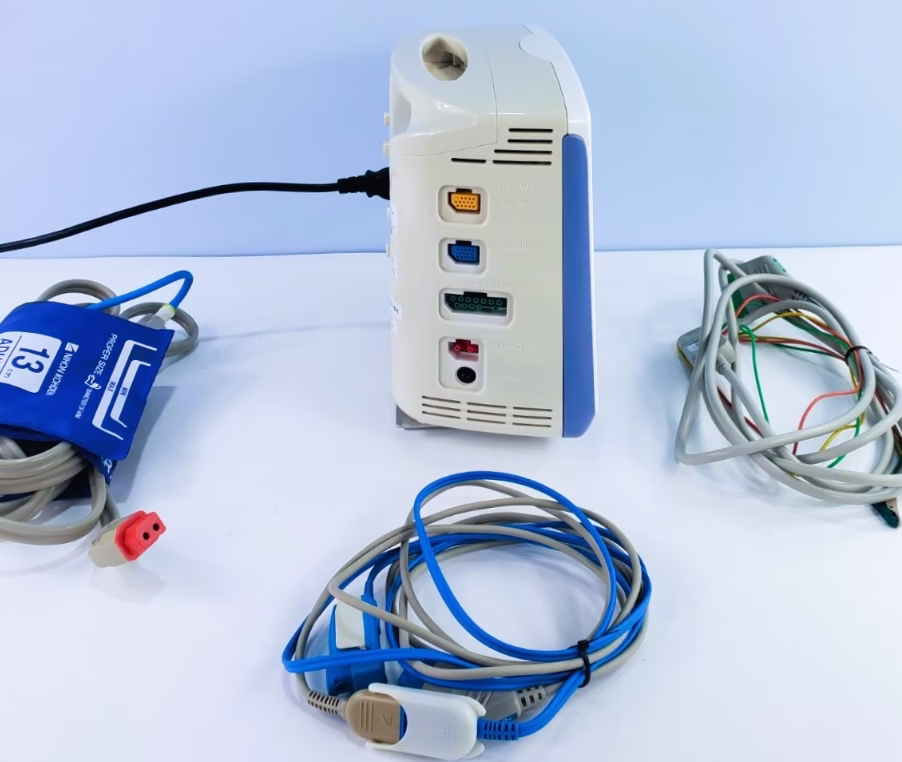

NIHON KOHDEN Vismo PVM-2703
Patient Monitor
Very good condition
Fully tested
With NIBP cuff and hose SPO2 and ECG cables
Several units available

FEATURES:

PVM series is a smart range of bedside monitors designed to include a new, unique on-screen operation guide that makes monitoring even easier by not only assessing problems but also giving illustrations and guidance on how to solve them.

Responsive range

PVM-2703 comes with 10.4” high-resolution color TFT LCD touchscreen displays with features responsive to real-life need. Large, clearly structured touchscreen offering simple, easy, and intuitive operation

PVM 2703 basic parameters: ECG, RESP, SpO2, NIBP, TEMP, additional CO2/ IBP

PVM 2703: five waveforms – ECG with 2 traces, SpO2, RESP/ CO2, IBP

Three hours of continuous monitoring on battery power

Smart review

series offers dynamic storage and review facilities with full disclosure waveforms and tabular and graphical trends.

Active on-screen operation guide

PVM series offers selectable screen layouts and a unique feature thatensures responsible monitoring – streamlining operations and making it extremely easy to use for any caregiver.

Revolutionary PWTT technology

This monitor incorporates a new parameter, PWTT (pulse wave transit time), which can have correlation with blood pressure. The monitor continuously calculates PWTT from ECG and SpO2. During periodic NIBP measurement, if PWTT exceeds the threshold it triggers NIBP measurement. This increases the chance to detect sudden change in blood pressure between periodic NIBP measurements.

The blood pressure measuring technology in this monitor uses Nihon Kohden’s patented PWTT technology (US patent no. 5564427, other patents pending).

Special features of Vismo PVM-2703 PVM-2703, lightweight and easy to carry with handle, provides some additional features that further enhance monitoring .

Complete modular flexibility with Smart CableTM System,which immediately detects parameter type and starts measuring accordingly when connected to a MULTI socket.

One MULTI connector for IBP or CO2

Network capability (LAN/telemetry)

Inter-bed monitoring with data of two numerics for eight patients or all numeric data for one patient on inter-bed screen

Any bedside monitor can be used to check vital data of another monitor in the network through ‘Multiple bed window’ function, which displays data for all patients and individual bed window for a particular patient

Effective ECG monitoring with 23 types of arrhythmia detection, ST measurement, and selectable QRS detection (adult, child, or neonate).
