Description

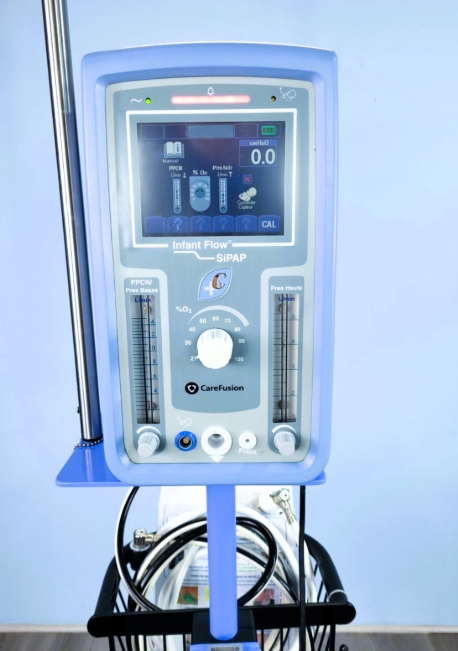

CAREFUSION Infant Flow SiPAP

Infant ICU Ventilator

Good working condition

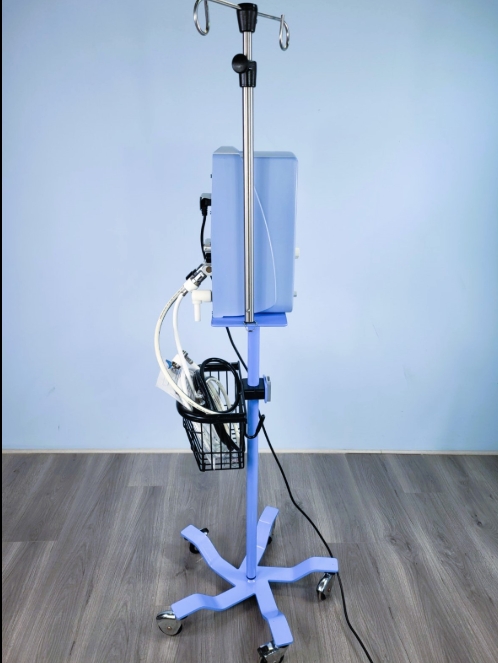

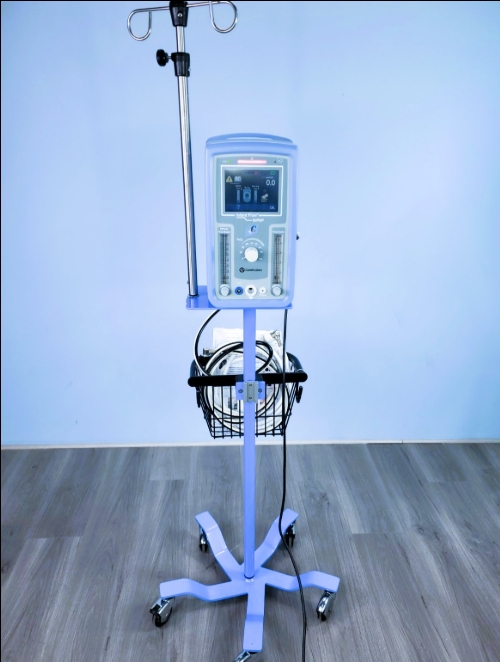

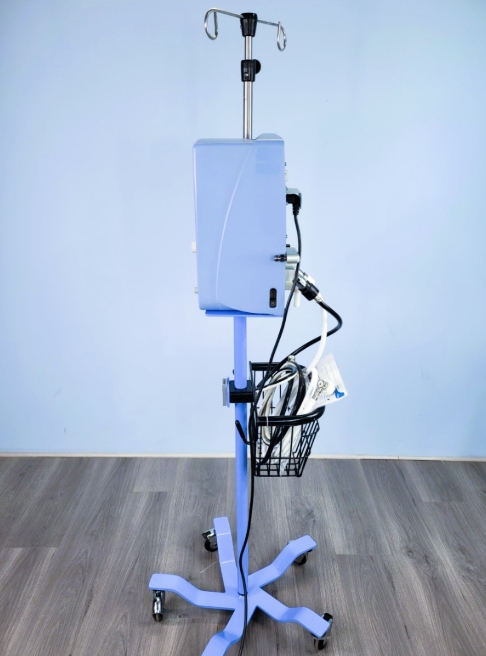

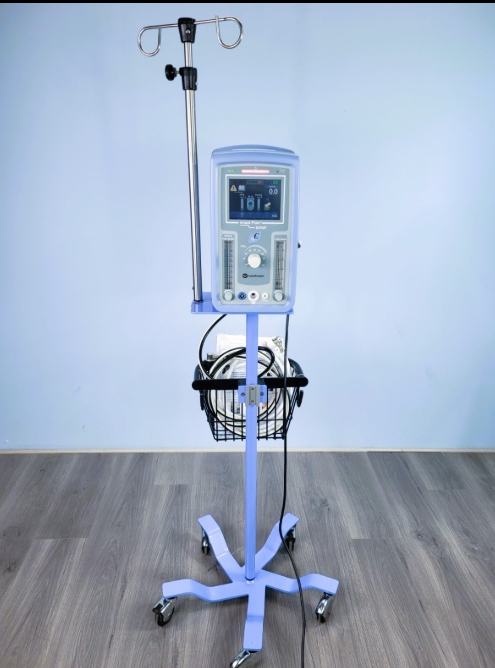

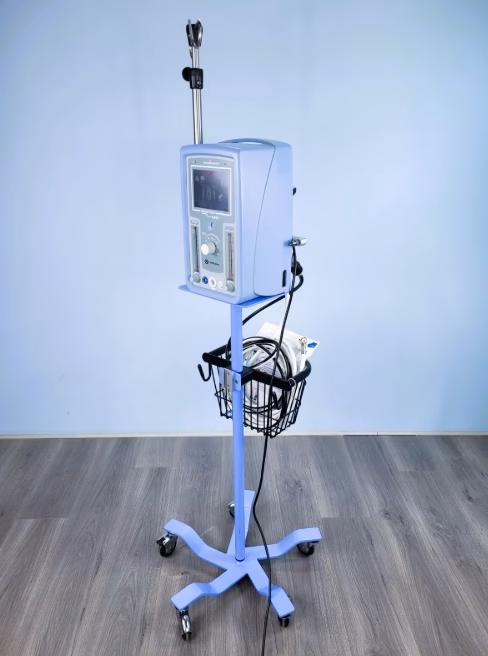

With its roling stand and gas hoses

Several units available

FEATURES:

The CareFusion Infant Flow SiPAP is a non-invasive neonatal respiratory support system designed for premature and full-term infants with respiratory distress, commonly used in NICU environments. It delivers CPAP-based ventilation and synchronized pressure support through a nasal interface.

Ventilation Modes

• nCPAP (Nasal Continuous Positive Airway Pressure) – delivers continuous positive airway pressure to keep alveoli open.
• BiPhasic mode – alternates between two CPAP pressure levels to assist breathing and improve lung recruitment.
• BiPhasic Triggered (BiPhasic tr) – patient-triggered pressure support with apnea backup breaths (on Comprehensive models).

Respiratory Technology

• Variable flow technology for stable airway pressure and reduced work of breathing.
• Infant Flow generator system that maintains consistent CPAP even with leaks around the nasal interface.
• Designed specifically for neonates and premature infants requiring gentle respiratory support.

Adjustable Clinical Parameters

• FiO₂: adjustable from 21% to 100%.
• CPAP pressure: typically 0–20 cmH₂O range.
• Breath rate and inspiratory time controls for BiPhasic modes.
• Adjustable I:E ratio, T-High, and rate settings.

Monitoring & Safety

• Integrated monitoring of:
  • airway pressure
  • oxygen concentration
  • respiratory rate
  • spontaneous breathing rate
• Comprehensive alarm system, including:
  • high/low airway pressure
  • high/low FiO₂
  • apnea or low breath rate
  • gas supply failure
  • battery status.

Interface & Usability

• Touch-screen LCD display with pressure-time waveform graphics.
• User-friendly controls for quick adjustment in NICU settings.
• Compatible with nasal prongs or nasal masks.

System & Connectivity

• RS-232 port for connection to patient monitoring systems or EMR.
• Up to 2 hours internal battery backup for transport within the hospital.
• Portable driver unit (~8.8 kg).

Clinical Benefits

• Helps reduce the need for invasive mechanical ventilation.
• Supports lung development in premature infants.
• Used for conditions such as apnea of prematurity, neonatal respiratory distress, or post-extubation support.

Typical applications:

• NICU respiratory support
• Post-extubation support
• Apnea of prematurity treatment
