Description

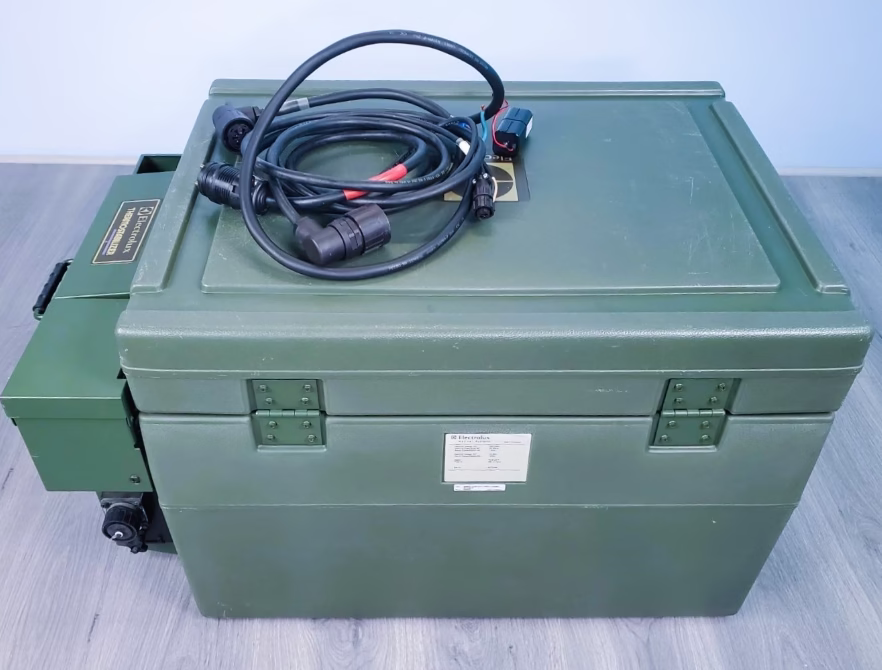

ELECTROLUX THERMOSTABILIZER RCB 42 P

Blood Bank, transport refrigerator

Good working condition

Fully tested

Included:

Testo 177-T3 Logger: a 3-channel temperature logger: one internal sensor plus two external probe sockets, and also includes an event input (e.g., for door contact) to log events.

Testo 0554 1765 USB-Interface

FEATURES:

• It is a portable thermostabilizer (cooling/heating unit) designed for storing and transporting pre-cooled blood and medicinal products over long periods.
• Cooling/heating is achieved via thermoelectric/Peltier technology (solid-state, no moving compressor parts).
• It operates on a wide range of power supply: AC (110/220 V, 50/60 Hz) and various DC voltages (12/24/28 V) — making it suitable for mobile/field use.
• Maintains a preset internal temperature between approximately 1 °C to 10 °C, depending on configuration.
• Can maintain temperature without external power (i.e., during transport) for up to 10 hours at ambient ~ 32 °C.
• Ambient operating range: from about –32 °C up to 44 °C and maintain internal set-temperature.
• Storage capacity: Internal volume approx 43 L; example capacity: up to 30 whole-blood bags (500 ml each) or 50 packed red blood cell units of 270 ml each.
• External dimensions (approx): H x W x D = 500 × 840 × 550 mm; internal: 240 × 495 × 335 mm. Net weight ~29 kg.
• Insulation: Polyurethane (CFC/HCFC-free) with insulation thickness ~110 mm.
• Materials: Outer and inner shell made of polyethylene (PE).
• Alarm system: There is an audible and visual alarm (both AC/DC) to signal deviation or power-failure.
• Special features: Because of interference suppression, it is operable in aircraft environments.
• Controls: The repair & maintenance manual shows there are switches to set minimum and maximum temperature thresholds (via switch bank S101) for the electronic control board.
