Description

Electrosurgical unit

Good working condition

Fully tested

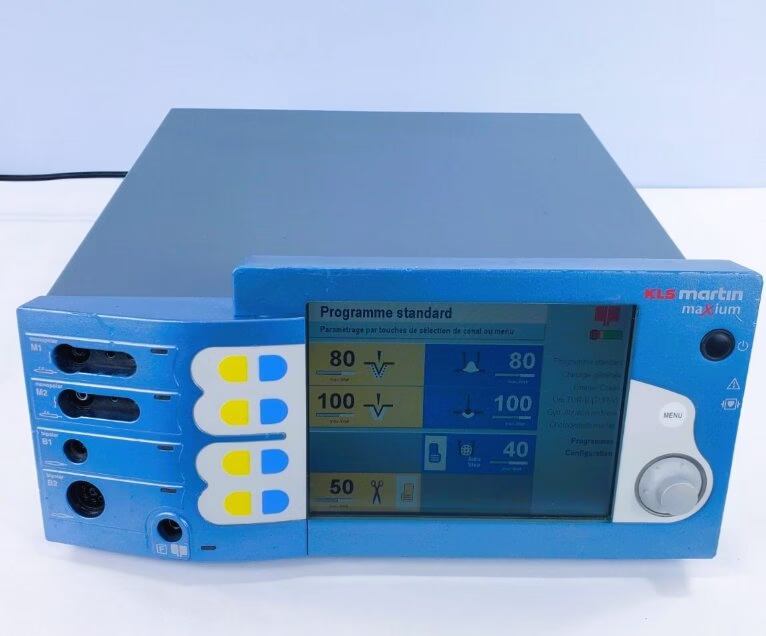

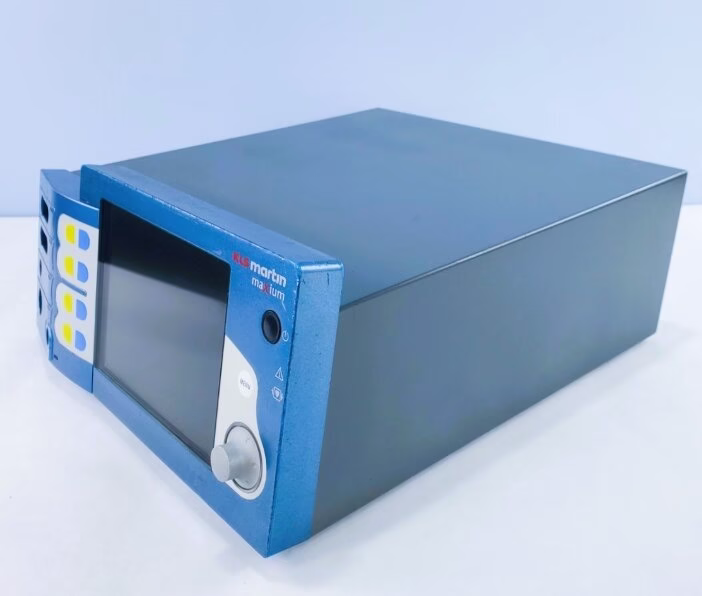

The KLS Martin ME 402 maXium is a high-performance electrosurgical generator designed for precision, versatility, and safety in modern operating environments. It combines advanced power regulation technology with user-oriented design, suitable for both monopolar and bipolar surgical applications.

General Features

• Dual functionality: Supports both monopolar and bipolar electrosurgery, making it adaptable for a wide range of surgical disciplines.
• High-frequency output: Operates at approximately 403 kHz, delivering consistent and efficient cutting and coagulation.
• Automatic power regulation: Continuously adjusts the output to ensure stable cutting performance regardless of tissue impedance or condition.
• Wide application range: Ideal for general surgery, ENT, dermatology, gynecology, urology, and other specialties requiring precise energy control.
• Integration-ready: Fully compatible with maXium Beamer and other modular KLS Martin systems for argon-assisted cutting or coagulation.

Performance & Power

• Cutting power: Up to 180 watts, providing clean, controlled incisions with minimal thermal damage.
• Coagulation power: Up to 50 watts, enabling effective hemostasis while protecting surrounding tissue.
• Smooth energy delivery: Advanced waveform control ensures reproducible results and reduces tissue sticking or charring.
• Programmable settings: Multiple preconfigured programs (e.g., Papilla I, Papilla II) allow surgeons to fine-tune the effect between pure cutting and mixed coagulation.

User Interface & Control

• Intuitive touch control panel with clearly labeled functions and color-coded indicators.
• Preset memory groups (G1–G5): Enable quick recall of customized settings for different procedures or surgeons.
• Real-time display: Shows power levels, modes, and active outputs during operation for maximum control and safety.
• Audible and visual signals confirm activation or alert the operator in case of faults or improper connections.

Safety & Monitoring

• Patient plate monitoring system (NEM): Detects proper electrode contact to prevent burns or current leakage.
• Self-diagnostics: Automatic system checks during startup and continuous operation to ensure reliability.
• Error logging: Internal memory records activations, usage data, and service events for maintenance and traceability.
• Protective circuits: Safeguard against short-circuit, overcurrent, and overheating conditions.

Electrical & Physical Specifications

• Input voltage: 100–240 V AC (±10%), 50/60 Hz – universal power supply for international compatibility.
• Max input current: 6.3 A.
• HF output voltage: Up to 560 V peak.
• Weight: Approx. 8.3 kg, compact for its class.
• Cooling: Forced air system for stable thermal performance during prolonged use.

Maintenance & Service

• Service menu access: Allows calibration, configuration, and detailed diagnostic checks by authorized technicians.
• Hardware modularity: Individual circuit boards for monopolar, bipolar, and control functions facilitate easy servicing.
• Upgradeable firmware and compatibility with future KLS Martin accessories extend its lifespan and adaptability.
