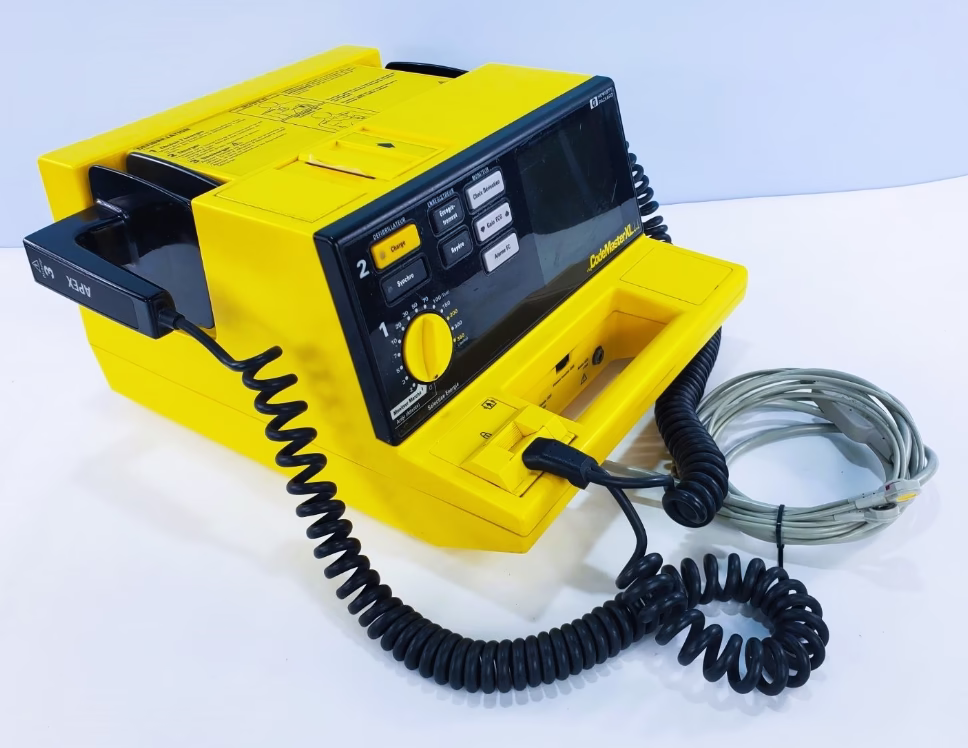

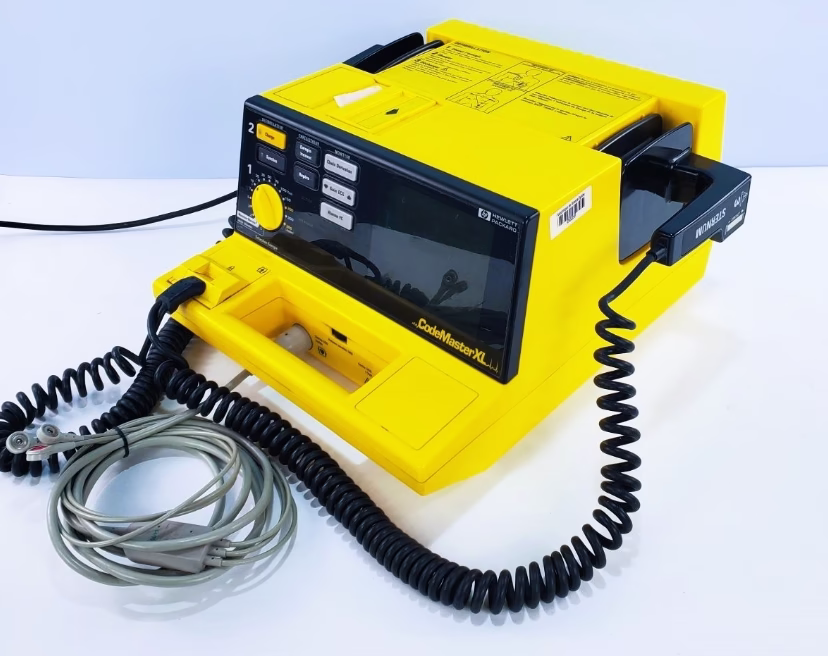

HEWLETT PACKARD CodeMaster XL

Defibrillator AED Monitor

Does not power up

As-is

ECG Cables and External Hard Paddles Included

FEATURES:

The HP Codemaster XL Combines a defibrillator, cardio scope, and annotated recorder to provide a hands-off defibrillation option in this High-performance unit. The HP Codemaster XL offers multi-functional electrodes that allow you to do pacing and defibrillation with the same pads. The Defibrillation system has built-in paddles for pediatric and adult patients. With its easy 1-2-3 operation, the system is easy to use and offers a speedy response in an emergency. The system can charge from 0 to 360 in 5 seconds and store up to 28 events in the memory. The HP Codemaster Xl Plus has a bright 5-inch screen that can tell you the condition of the patient at a glance.

• Defibrillator with ECG and recorder
• Provides 1-2-3 operation
• Built-in pediatric paddles under slide-off adult paddles
• Preset heart rate alarms
• High-capacity battery
• Built-in diagnostics

Defibrillator

• Waveform: Damped sinusoidal (Lown)
• Output Energy: 2, 3, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, and 360 joules
• Charge Control: Push-button on apex paddle and on front panel
• Charge Time: Less than 5 seconds to 360 joules with battery present. Less than 15 seconds to 360 joules on AC only
• Armed Indicators: Charge done tone, charge done lamp on apex paddle, and available energy indicated on display
• Paddle Contact Indicator (optional): 3-color LED bar graph array on STERNUM paddle indicates the quality of defibrillator paddle contact before discharge
• Paddles: Standard paddles are anterior/anterior, adult, and pediatric. Adult electrodes (83 cm2) slide off to expose pediatric electrodes (21 cm2). The paddle cord is 10 ft (3 m). Full range of internal paddles available

Monitor

• Inputs: ECG may be viewed through paddles or patient cable. Lead I, II, III, or PADDLES selectable. Additional leads (aVR, aVF, aVL, V Leads) and PADS are available. Monitor and recorder indicate selected ECG source
• Lead Fault: LEADS OFF message and dashed baseline appear on monitor if a lead becomes disconnected
• Common Mode Rejection: Greater than 100 dB measured as per AAMI standards for cardiac monitors (EC13)
• Display Size and Type: 5 inch (12.7 cm) diagonal CRT for 4 seconds of ECG data on screen; non-fade, fixed trace. Scrolling trace is selectable
• Sweep Speed: 25 mm/sec nominal
• Frequency Response: 0.5 to 40 Hz
• Heart Rate Display: Digital readout on the monitor from 15 to 300 BPM.
• Heart Rate Alarms: Three pre-set pairs of high and low heart rate alarm limits from 20 to 280 BPM. (Configurable pairs are optional.)
• ECG Output: 1V/mV
• Patient Cable Length: 10 ft (3 m)

Thermal Array Recorder

• Event Summary (optional): Stores and prints 3 seconds pre- and 8 seconds post-critical event data for up to 28 events. Data retained after the unit is turned off
• Annotates: Time, date, HR, event marker, ECG mode, defibrillator mode, selected energy, actual delivered energy, peak current, and patient impedance
• Speed: 25 mm/sec.
• Paper Size: 50 mm by 30 m (100 ft)
• Recorder Mode: Automatically documents events and ECG during defibrillation episodes. The recorder can be configured to run in either real-time or with a six-second delay
• Frequency Response: 0.5 to 40 Hz or 0.05 to 150 Hz selectable
