Description

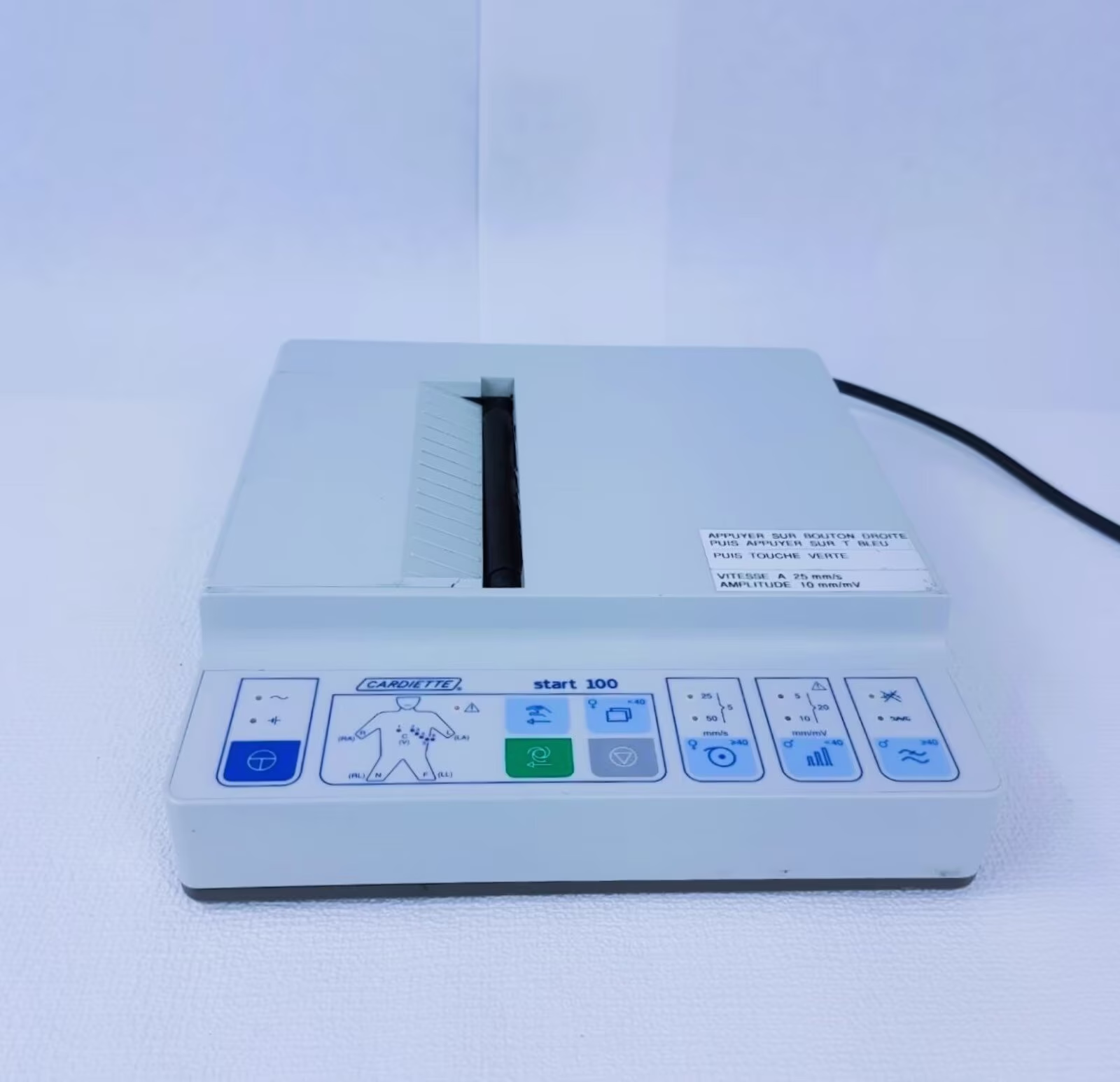

CARDIETTE Start 100

Electrocardiograph / ECG Machine

Good working condition

As seen

in the photos FEATURES:

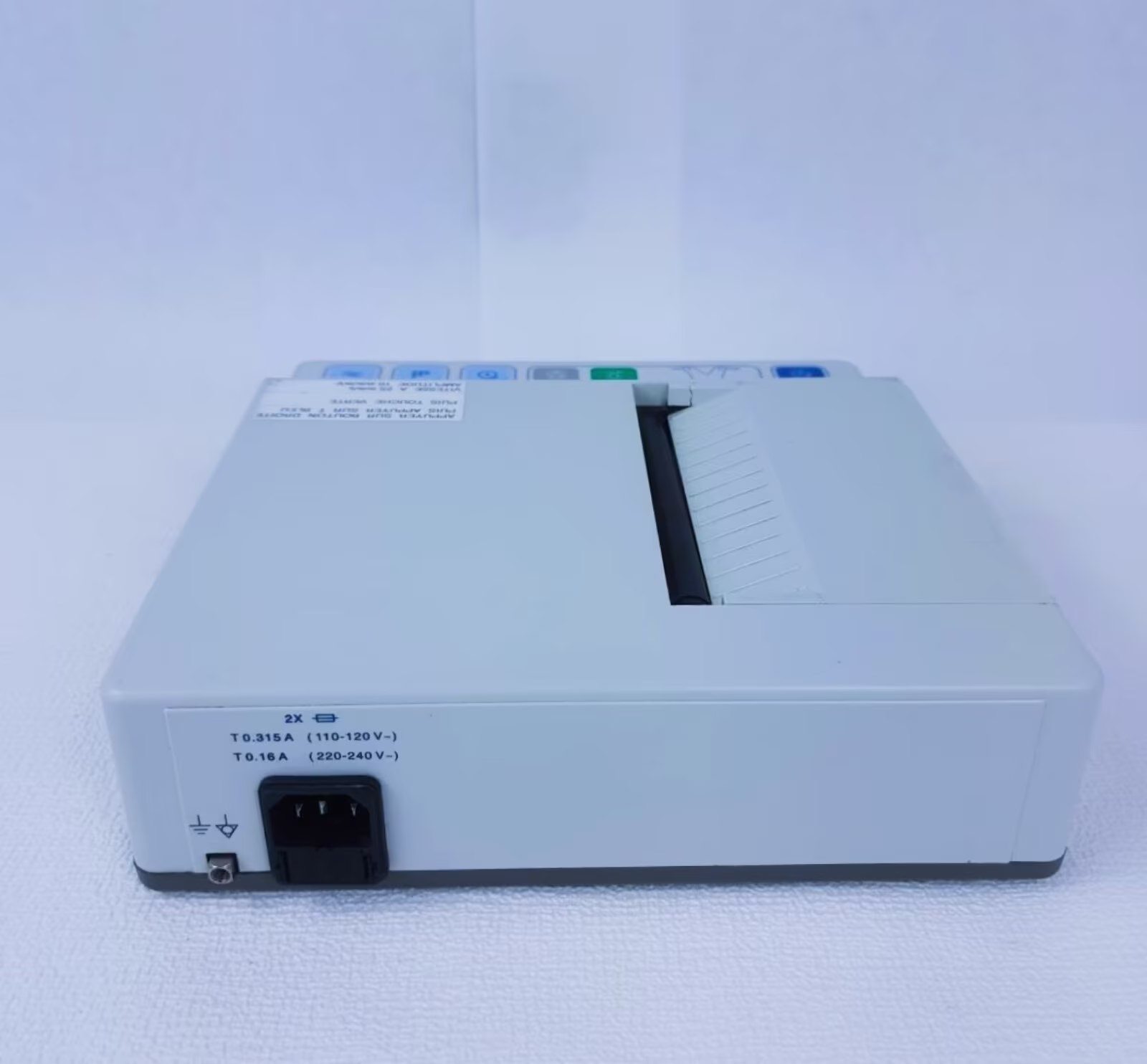

Portability and Power Supply: The device is compact and lightweight and runs on mains power (110-240V AC).

Print capabilities: Supports 3 or 6-lead ECG printouts using 130mm wide thermosensitive paper. The thermal printer offers a resolution of 8 dots/mm with a usable print height of 108 mm.Lead

Acquisition: Records 12 standard ECG leads, 8 of which are directly acquired and 4 (III, aVR, aVL, aVF) are reconstructed.

Data Acquisition & Sampling: Features a 12-bit resolution with a sampling rate of 1000 samples/sec per print channel and filter, and 500 samples/sec per channel during the computational phases.

Sensitivity Settings: Provides manual sensitivity options of 5, 10, and 20 mm/mV (±5%), as well as automatic adjustments based on signal amplitude.

Filtering Options: Equipped with digital notch filters for 50, 55 and 60 Hz to eliminate mains interference and a 0.5 Hz anti-drift high-pass filter to stabilize the baseline.
