Description

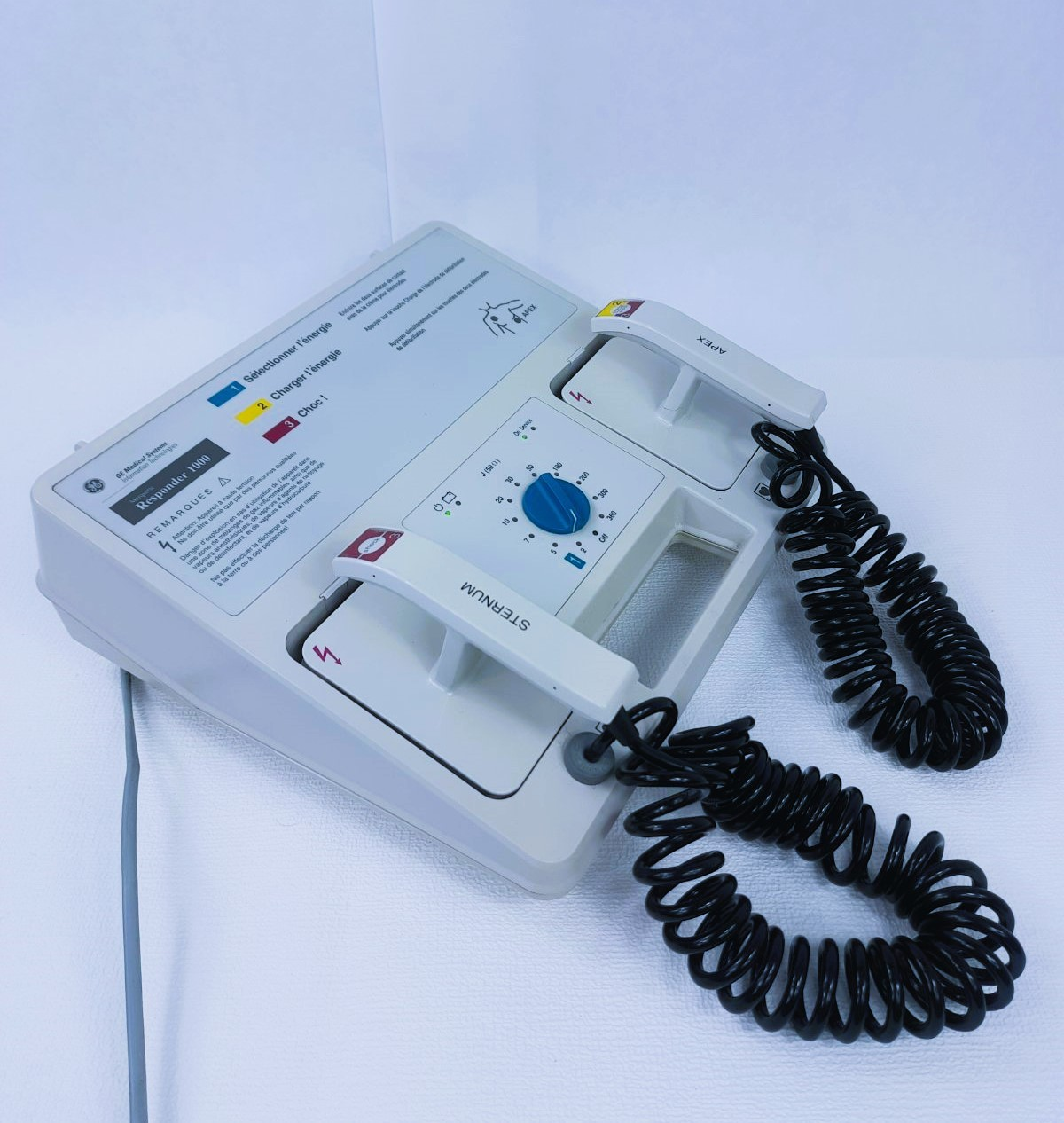

GE Marquette Responder 1000
Defibrillator
Good working condition

FEATURES:

Ideal defibrillator for rapid, reliable treatment in cardiac emergencies. The colour coded 3-step operating sequence, fail-safe two-hand defibrillation, visual and audible control signals, automatic internal safety discharging if the defibrillation function is interrupted and sophisticated service diagnostics guarantee exceptional reliability.

11 energy levels; 2J, 5J, 7J, 10J, 20J, 30J, 50J, 100J, 200J, 300J, 360J, selection with rotary selector switch

Waveform: monophase damped sinusoidal halfwave with decay period

non-synchronized defibrillation

Detection of external signals Analog 1-Volt ECG signal or specific Sync signal from monitor Sync signal is returned to monitor to enable display of the Sync pulse Internal self-test with indication of error codes for servicing

Defibrillation Electrodes • Marquette Responder 1000: wired hard paddles
