Description

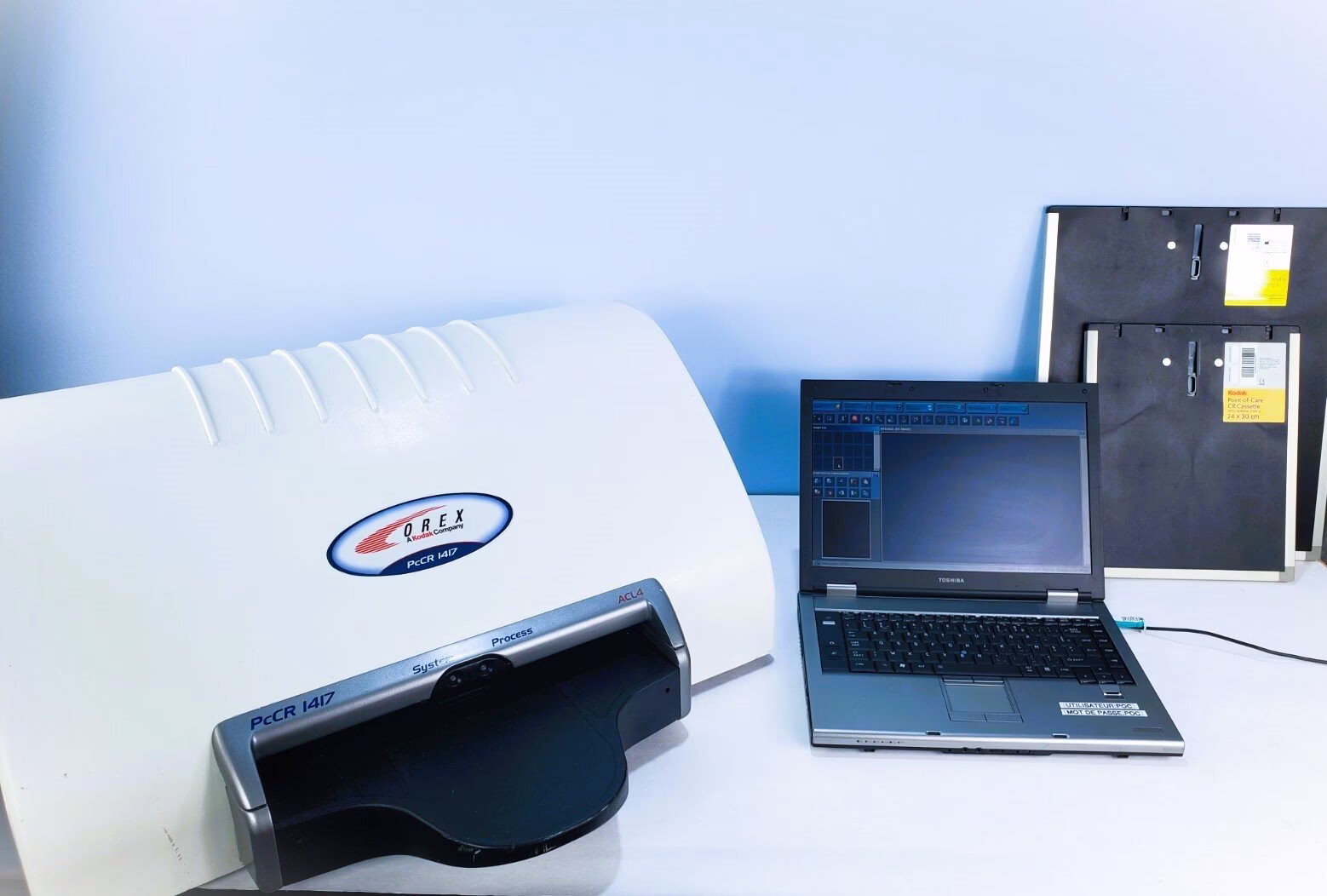

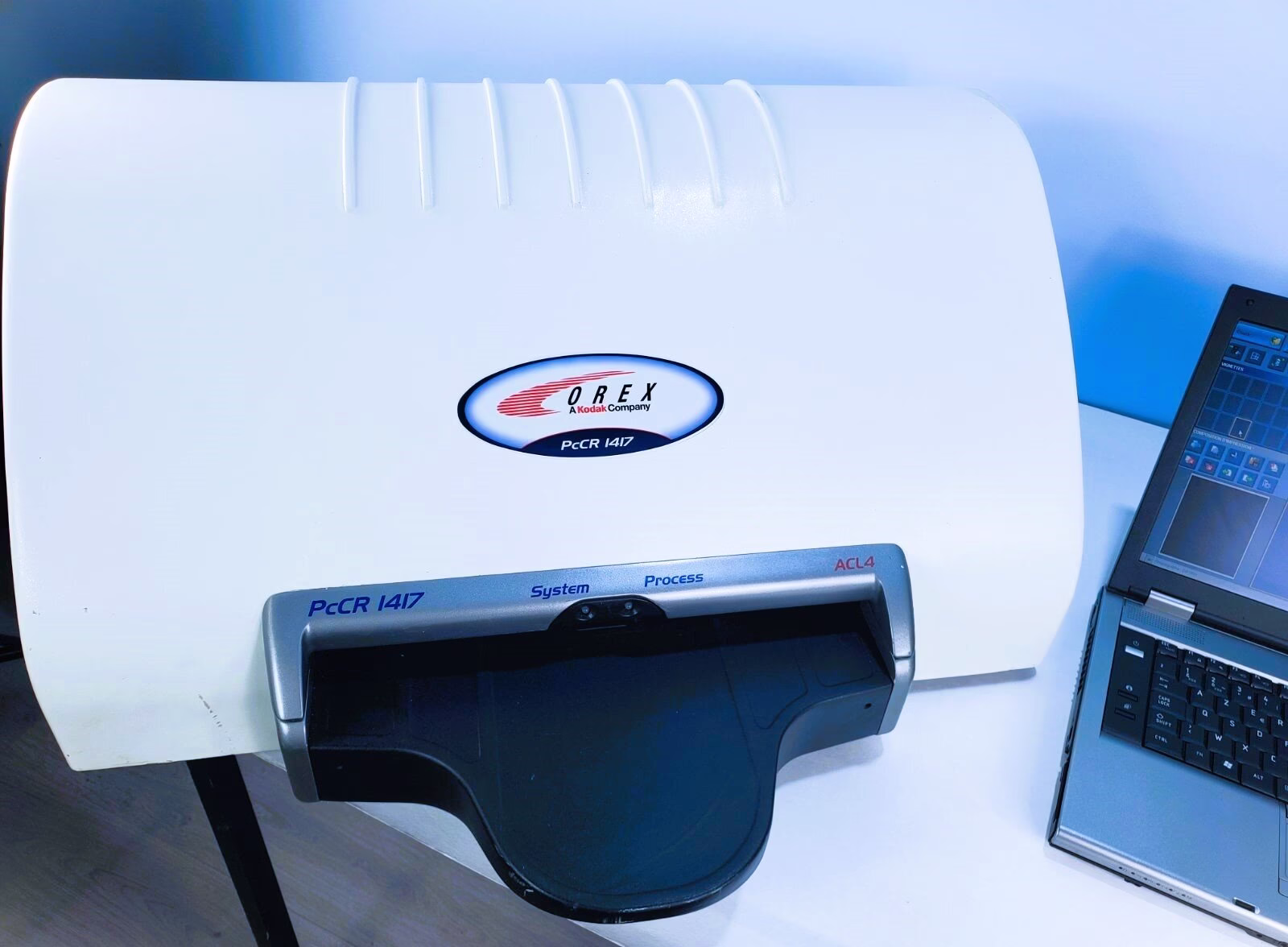

OREX KODAK PcCR 1417 ACL4
Computed radiography (CR) system / Digital X-ray Developer
Good working condition

Included:

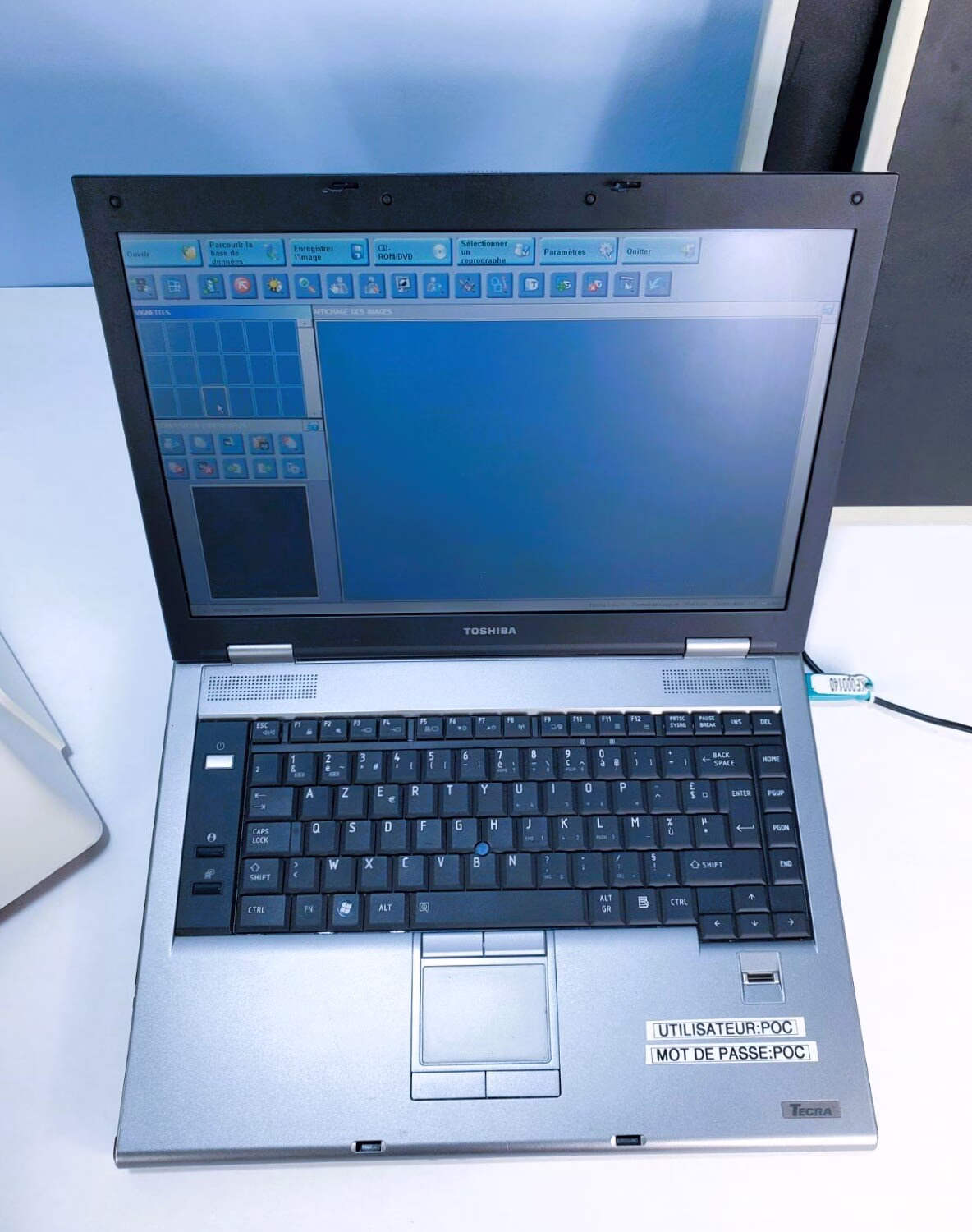

Laptop PC

Software

Licence Key

Cables charger

CR System

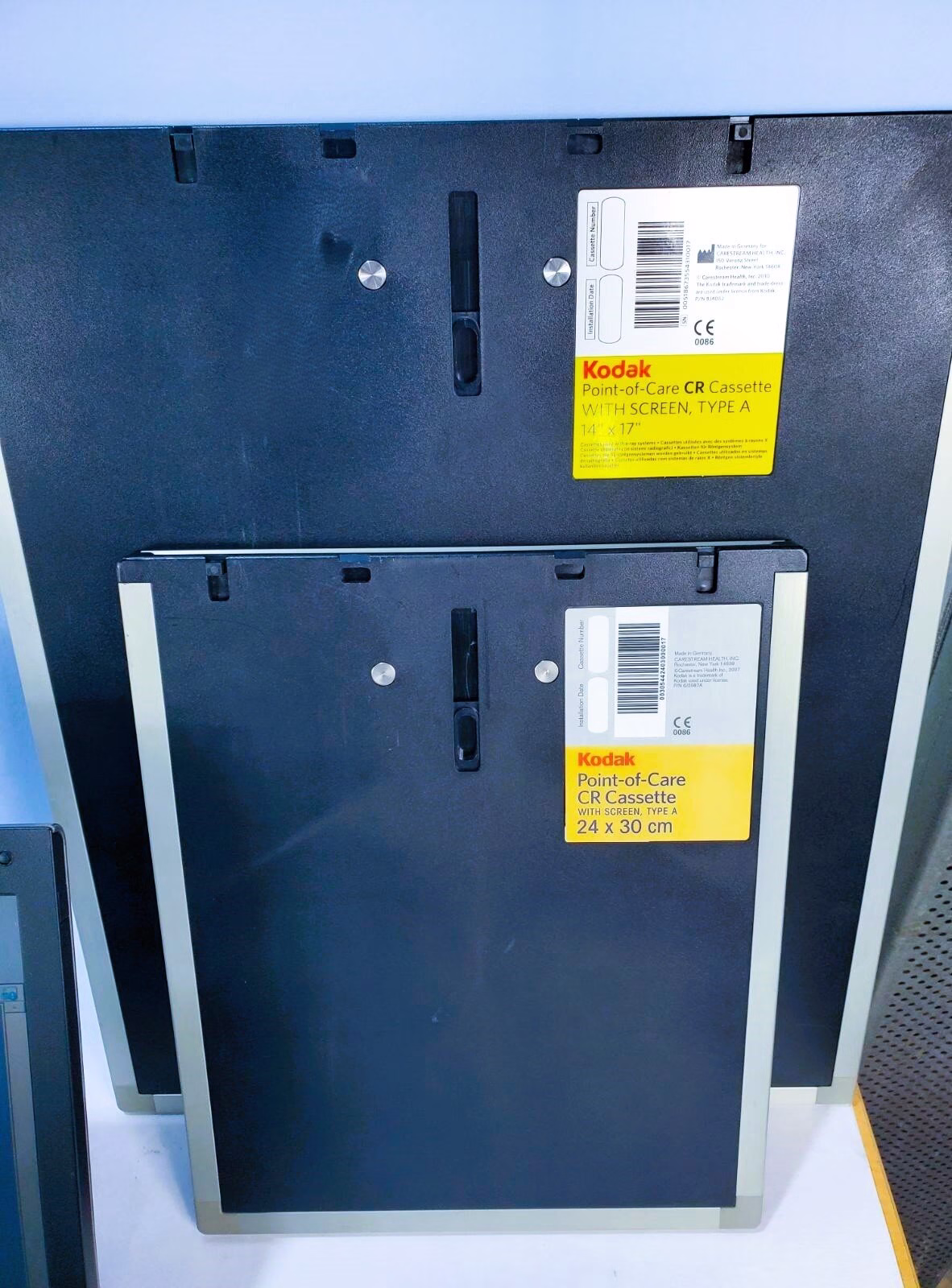

CR casette 14×17

CR casette 24×30

System Overview & Key Features
All-in-one Compact Design Includes a laser scanner, reusable phosphor imaging plates, advanced image-management software, and a PC-based review station—delivered in a single, affordable unit.

Highly Versatile & Portable Can be mounted on an optional Orex Z-Cart or used on a tabletop. Perfectly suited for environments such as hospital ERs, ORs, clinics, imaging centers, mobile units, rural/off-shore facilities, and even field hospitals.

Rugged and Reliable With over 350 units deployed in challenging military settings, the system is proven to operate effectively even under demanding conditions.

Technical Specifications
Throughput Offers a scan rate of up to 41 cassettes per hour.

Image Quality

Grayscale Resolution: 12-bit acquisition, 12-bit display.

Physical Dimensions

Size: 733 × 655 × 340 mm (29″ × 26″ × 14″)

Weight: Approximately 40 kg (88 lbs)

System Configurations

Options include Desktop setup, integrated mobile cart (Z-Cart), distributed CR (D-CR), and even bone mineral densitometry with OsteoGram® software and dedicated cassettes.

Software & Compatibility

Built-in acquisition and PACS functionality for image analysis, archiving, and remote communication.

Based on a scalable, user-friendly DICOM 3.0 software platform.

Computer Requirements

PC with ≥ Pentium IV 2.4 GHz, 1 GB RAM, USB II port, Windows 2000 or XP Professional (small-form-factor chassis required for Z-Cart use).

Power & Safety Standards

Power Input: Single-phase 100–240 VAC ±10%, 50–60 Hz, ~200 VA.

A UPS is recommended for stability.

Certifications: FDA (USA), CE (EU), SDA (China), with other markets pending.

Meets safety standards EN 60601-1, IEC 60825-1, and IEC 60601-1-2.
