Description

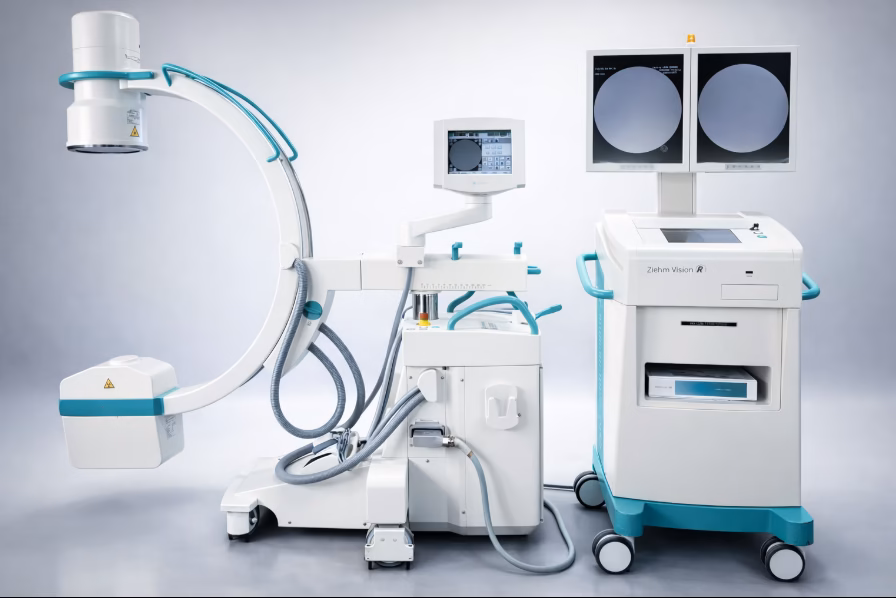

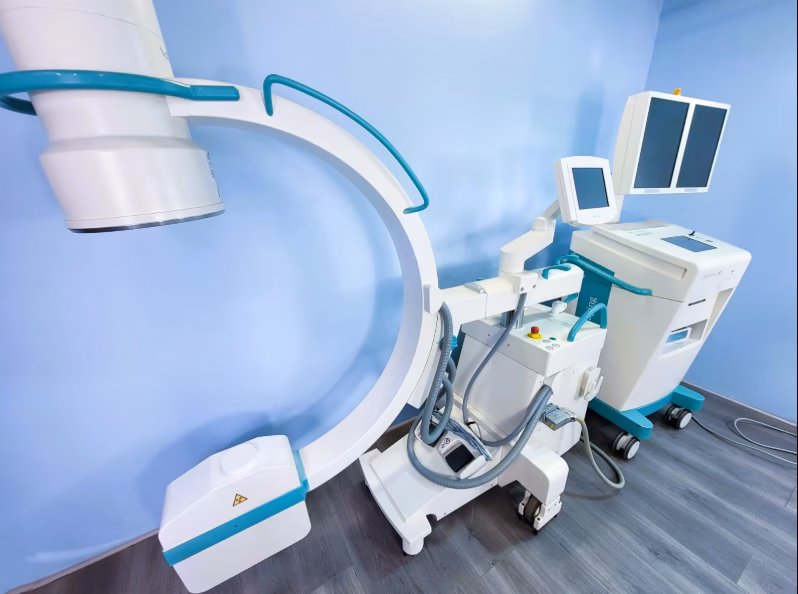

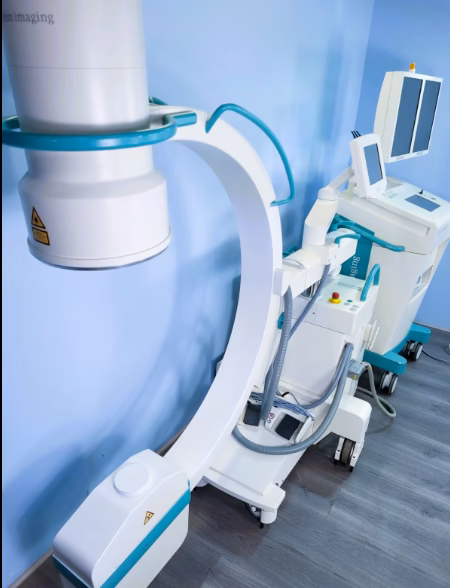

Ziehm Imaging Vision R

C-ARM

Good working condition

Tested

General Overview

• Mobile C-arm imaging system designed for:
  • Orthopedics
  • Vascular surgery
  • Cardiology
  • Neurosurgery
• Built for continuous use in operating rooms with high performance and reliability



Generator & X-ray System

• High-frequency monoblock generator
• Power:
  • Standard: 7.5 kW
  • Optional: up to 20 kW
• Rotating anode tube for better heat management and penetration
• kV range: 40 – 120 kV
• mA range: 1.5 – 75 mA
• Pulsed fluoroscopy with short pulses (up to ~30 fps)



Cooling & Performance

• Advanced Active Cooling (liquid cooling system)
• Designed for long and demanding procedures without overheating



Imaging Chain

• Image intensifier (Tri-mode):
  • 6″ / 9″ / 12″ options
• CCD digital camera
  • Resolution: 1024 × 1024 (1K x 1K)
• High contrast and signal-to-noise ratio (~68 dB)
• Over 4,000 shades of gray



Image Processing & Software

• Real-time processing:
  • Recursive filter (noise reduction)
  • Edge enhancement
  • Digital zoom & rotation
  • Windowing / grayscale inversion
• Cine loop (up to 30 fps)
• Last Image Hold
• Optional:
  • DSA (Digital Subtraction Angiography)
  • Roadmapping
  • Measurement tools (distance, angle)



Monitors & Interface

• Dual 18″–19″ flat screen monitors
• Resolution: ~1280 × 1024
• Optional:
  • Display of fluoroscopy endoscopy simultaneously

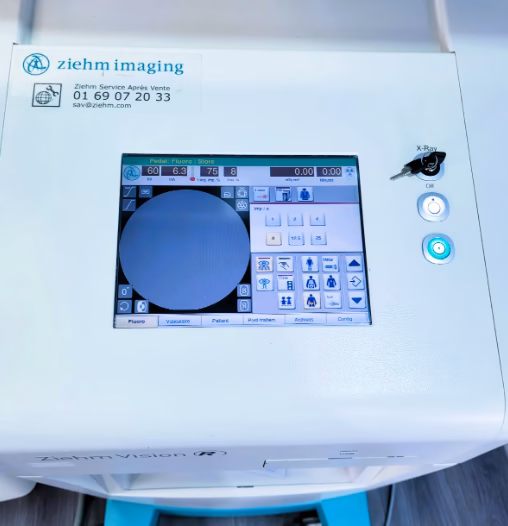

• Touchscreen control panel (one-touch operation)



Storage & Connectivity

• Digital storage: up to ~55,000 images
• Export:
  • USB
  • CD/DVD
• Full DICOM compatibility (storage, print, worklist)



Mechanics & Mobility

• Motorized movements:
  • Vertical travel: ~43 cm
  • Horizontal travel: ~22 cm
• Orbital rotation: up to ~135°
• Angulation: ±225°
• Compact mobile design with EasyDrive steering/braking system
